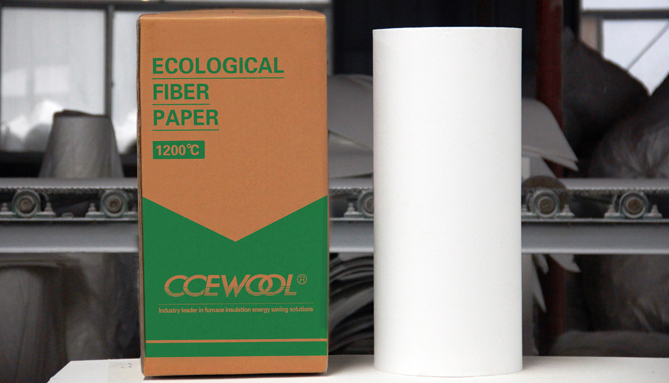

CCEWOOL® soluble paper is made from alkaline earth silicate fiber consisting SiO2, MgO, CaO with certain organic binders. We supply soluble paper whose thickness is from 0.5mm to 12mm, which can be used in many applications at temperatures up to 1200℃.
Temperature degree: 1200℃
CCEWOOL® soluble paper is made from alkaline earth silicate fiber consisting SiO2, MgO, CaO with certain organic binders. We supply soluble paper whose thickness is from 0.5mm to 12mm, which can be used in many applications at temperatures up to 1200℃.
The color is bluish
Max temperature up to 1200C
Won't cause any uncomfortable feelings contacting with skin
High temperature gasket and sealing in various application
Fire proof
Fireproof doors
Expansion joints
Fireplace converter gasket
Gasket between Aluminum and zinc washer
Melting and holding furnaces refractory backing
1. Using 9 shot-removal process, the shot content is 5% lower than similar products
2. Thickness ranges from 0.5mm to 12mm, width from 50mm to 1270mm
|
CCEWOOL® Soluble Fiber Paper |
|
|
Classification temperature |
1200 ℃ |
|
Density, Kg/m3 |
190-210 |
|
Operation temperature |
1000℃ |
|
Melting point |
>1300℃ |
|
Tensile strength(Kpa) |
>250 |
|
Loss on ignition (wt%) |
9 |
|
Permanent Linear shrinkage, % ENV(1094-1) |
|
|
After 24 hours @1000℃ |
1.5 |
|
Thermal conductivity (%) |
|
|
400℃ |
0.1 |
|
600℃ |
0.16 |
|
800℃ |
0.22 |
|
Chemical composition (%) |
|
|
SiO2 |
65-68 |
|
CaO+MgO |
27-33 |
|
others |
<=3% |
|
Specification (MM) |
60000*610*1;30000*610*2 |
|
20000*610*3;15000*610*4 |
|
|
12000*610*5;10000*610*6 |
|
|
Min Width: 5cm |
|
|
Package |
Inner Plastic Bag+Outer Carton |
