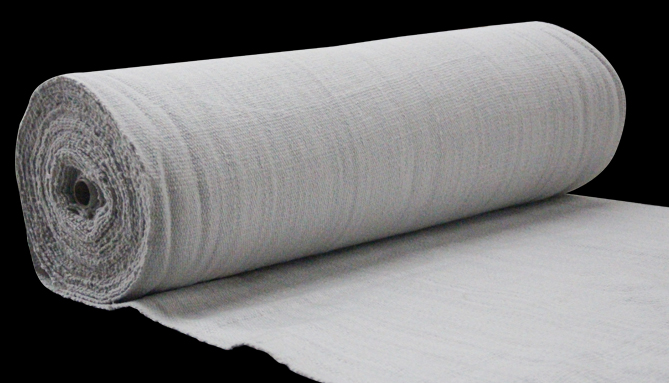

CCEWOOL® classic series ceramic fiber cloth is a woven fabric made from our high quality ceramic fiber yarn. It is lightweight, flexible, and available in a wide variety of thicknesses, widths and densities. There are certain organic fibers in the cloth, it would get black with the heating process, and won’t affect the insulation effect.
Temperature degree: 1260℃ (2300℉)
CCEWOOL® classic series ceramic fiber cloth is a woven fabric made from our high quality ceramic fiber yarn. It is lightweight, flexible, and available in a wide variety of thicknesses, widths and densities. There are certain organic fibers in the cloth, it would get black with the heating process, and won’t affect the insulation effect. With the temperature raising, the cloth will get back to white, it means the organic fibers are totally burnt. CCEWOOL® classic series ceramic fiber cloth has two types: inconel wire reinforced and glass filament reinforced.
Low thermal conductivity
Excellent thermal shock resistance, thermal stability
Excellent tensile strength
Sound insulation
Easy cut and easy stall
Containing no asbestos
Chemical corrosion resistance.
Gasket and wrapping material
Induction heating furnace coil insulation
Cable and wire insulation (thermal and/or electrical)
Infrared radiating diffusers
Boiler tadpole gaskets
Fuel line insulation
Furnace heat zone separators
Exhaust hood curtains
Pipe hanger insulation
1. Self-manufacturing ceramic fiber bulk, strictly control the shot content, color is whiter
2. Density is above 550kg/m3, high tensile strength
3. Thickness ranges: 2-6mm
|
CCEWOOL® Classic series Ceramic Fiber Cloth |
||
|
Classification Temperature （℃） |
1260 |
|
|
Name |
Glass Filament Reinforced Cloth |
Inconel Wire Reinforced Cloth |
|
Density（kg/m3） |
500 |
|
|
Long-term Operation Temp |
550 |
1050 |
|
Water Content |
≤2 |
|
|
Organic Content（%） |
≤15 |
|
|
Shrinkage at 982℃ （%） |
-1 |
|
|
Packing of ceramic rope |
Braided Bag |
|
