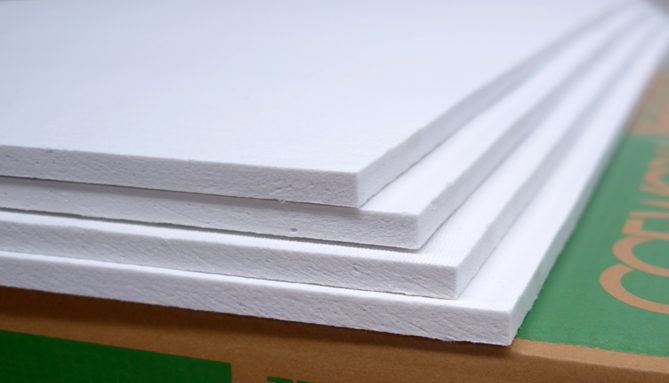

CCEWOOL® soluble fiber board is rigid board using CCEWOOL soluble fiber bulk with organic and inorganic binder. CCEWOOL® soluble fiber board is able to contact with fire directly and can be cut into different size. Low thermal conductivity, low heat storage and excellent resistance to thermal shock allow this product to be used in a wide range of application where temperature changes fast.
Temperature degree: 1200℃
CCEWOOL® soluble fiber board is rigid board using CCEWOOL soluble fiber bulk with organic and inorganic binder. CCEWOOL® soluble fiber board is able to contact with fire directly and can be cut into different size. Low thermal conductivity, low heat storage and excellent resistance to thermal shock allow this product to be used in a wide range of application where temperature changes fast.
Low thermal conductivity
Low thermal storage
High tensile strength
Thermal shock resistance
Lightweight
Excellent corrosion resistance
Hot face lining for furnace and oven
Flue & chimney linings in furnaces & kilns
Insulation for electric appliance and heat treatment
1. Continuously operating automatic production line offers product stable quality , which size is precise and the error is controlled within +1mm as well as high tensile strength.
2. Automatic temperature control system can complete deep drying within 2 hours., thus the compressive strength and rupture strength of ceramic fiber board are 5% higher.
3. Able to manufacture various shapes and sizes of bio soluble board as per customers' requirement.
|
CCEWOOL® Soluble Fiber board |
|
|
Classification temperature |
1200 ℃ |
|
Density kg/m3 |
300. 320. 350 |
|
Max short term exposure |
1200 ℃ |
|
Operation temperature |
1000 ℃ |
|
Melting point |
1270 ℃ |
|
Permanent linear change on reheating, %, EN1091-1 |
|
|
After 2 hours heating @600℃ |
0.15 |
|
@800℃ |
0.35 |
|
@1000℃ |
0.35 |
|
Thermal conductivity, W/m.K ASTMC-201 |
|
|
temperature @200℃ |
0.07 |
|
@400℃ |
0.1 |
|
@600℃ |
0.15 |
|
@800℃ |
0.19 |
|
Chemical composition(%) |
|
|
SiO2 |
65-68 |
|
CaO |
27-33 |
|
MgO |
2-7 |
|
Others |
0-1 |
