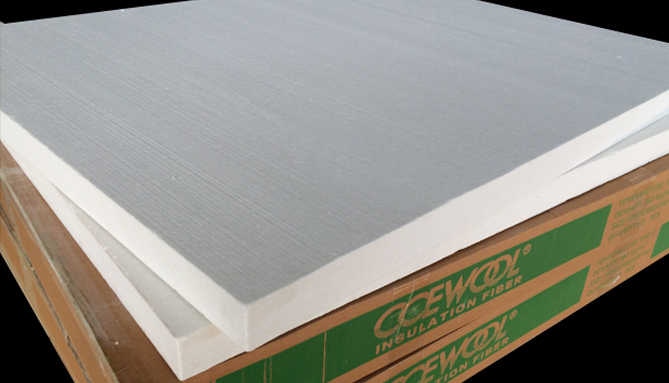

CCEWOOL ® classic series large size ceramic fiber board enjoys a host of characteristics such as light weight, precise size, high compressive strength, which is easy for installation, the max width is 1.8m.
Temperature degree: 1050℃ （1922℉）, 1260℃ （2300℉）， 1400℃ (2550℉)， 1430℃(2600℉)
CCEWOOL ® classic series large size ceramic fiber board enjoys a host of characteristics such as light weight, precise size, high compressive strength, which is easy for installation, the max width is 1.8m.
Intact, super large size
Excellent fireproof property
Low thermal conductivity
Low thermal storage
Accurate size, good flatness
refractory lining
Insulating backup to dense refractory materials
Insulating backup to brick & castable
Furnace hot face lining in ceramic kiln, box furnace & petrochemical furnace
Use in industrial heat processing equipment
Rigid high-temperature gaskets & seals
High-temperature baffles & muffles
Flue & chimney linings in furnaces & kilns
Molten metal trough covers
Hot gas duct linings
Expansion joints
Industrial heat shields & thermal barriers
Industrial combustion chamber construction
Domestic appliance & light-duty industrial combustion chamber construction
1. Able to produce large size ceramic fiber board whose max width reaches 1800mm with thickness of 20mm to 30mm.
2. Technology advantages: by 9 shot-removal process to filtering the slag, making sure the shot content of CCEWOOL wall hung ceramic fiber board is 5% lower than similar products.
3. Continuously operating automatic production line offers product stable quality , which size is precise and the error is controlled within +1mm as well as high tensile strength.
4. Automatic temperature control system can complete deep drying within 2 hours., thus the compressive strength and rupture strength of ceramic fiber board are 5% higher.
|
CCEWOOL® classic series large size ceramic fiber board |
|||||
|
Classification temperature |
1050 (1920℉) |
1260 STD (2300℉) |
1260 HP (2300℉) |
1400 (2550℉) |
1430 HZ (2600℉) |
|
Operation Temp℃ |
950 |
1050 |
1100 |
1200 |
1350 |
|
Permanent Linear Change on Heating (%) |
|||||
|
@950C,24hrs |
4 |
- |
- |
- |
- |
|
@1200C,24hrs |
- |
3 |
3 |
- |
- |
|
@1300C,24hrs |
- |
- |
- |
3 |
- |
|
@1350C,24hrs |
- |
- |
- |
- |
3 |
|
Thermal Conductivity (w/m.k) |
|||||
|
600℃ |
0.13 |
- |
- |
- |
- |
|
800℃ |
0.2 |
0.13 |
0.13 |
0.12 |
0.16 |
|
1000℃ |
- |
0.19 |
0.19 |
0.2 |
0.2 |
|
Rupture Strength (Mpa) |
|||||
|
Thickness≤25mm |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Thickness＞25mm |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
|
Chemical Composition (%) |
|||||
|
Al2O3 |
37 |
46 |
46-49 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
Al2O3+SiO2+ZrO2 |
- |
- |
- |
- |
99 |
|
Fe2O3 |
≤1.0 |
≤0.8 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Na2O+K2O |
≤0.8 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Package |
Carton box or pallet |
||||
