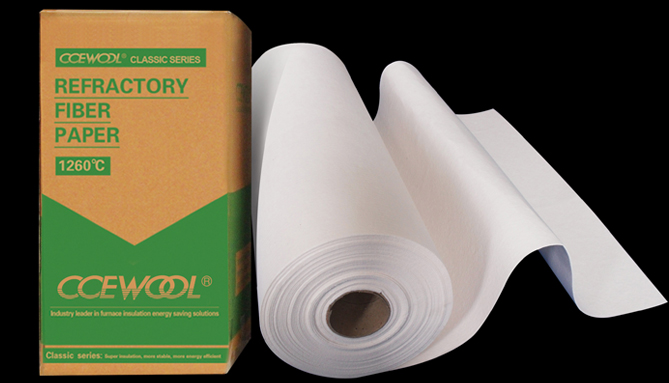

CCEWOOL® classic series ceramic fiber paper is also known for aluminum silicate fiber paper, made from 9 shot-removal process. Temperature degrees are 1260C, 1400C, 1430C, thickness varies from 0.5mm to 12mm. It is feasible to be cut into different shapes and size of gaskets according to customer’s requirement.
CCEWOOL® classic series ceramic fiber paper is also known for aluminum silicate fiber paper, made from 9 shot-removal process. Temperature degrees are 1260C, 1400C, 1430C, thickness varies from 0.5mm to 12mm. It is feasible to be cut into different shapes and size of gaskets according to customer’s requirement.
Low thermal capacity
Low thermal conductivity
Excellent electrical insulation properties
Excellent machining performance
High strength, tear resistance
High flexibility
Low shot content
Automotive and aerospace heat shields
Gaskets for ovens, stoves, heaters and other appliances
Automotive muffler insulation
Investment casting mold wrap
Expansion joints filling material
Insulation material for instruments and heating element
1. 9 shot-removal process, shot content is 5% lower than similar products.
2. Tensile strength is 3% higher than others.
3. Customized vacuum formed ceramic fiber paper and gasket with various shapes and sizes.
4. Thickness ranges from 0.5 to 12mm, width ranges from 50mm to 1270mm.
|
CCEWOOL® Classic series Ceramic fiber paper |
|||
|
Item |
1260STD |
1400HA |
1430HZ |
|
Operation Temperature |
1050℃ |
1200℃ |
1350℃ |
|
Density (kg/m3) |
180-200 |
||
|
Tensile Strength (PSI) |
58 |
94 |
136 |
|
Linear Shrinkage (％) |
|||
|
@1000C,24hrs |
2 |
- |
- |
|
@1100C,24hrs |
- |
2 |
- |
|
@1200C,24hrs |
- |
- |
2 |
|
Lose on ignition (％) |
9 |
9 |
9 |
|
Chemical Composition (％) |
|||
|
Al2O3 |
46 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
97 |
99 |
- |
|
ZrO2 |
- |
- |
15-17 |
|
Fe2O3 |
1 |
0.2 |
0.2 |
|
Na2O+K2O |
0.5 |
0.2 |
0.2 |
|
Specification (MM) |
60000*610*1;30000*610*2 |
||
|
20000*610*3;15000*610*4 |
|||
|
12000*610*5;10000*610*6 |
|||
|
Min Width: 5cm |
|||
|
Package |
Inner Plastic Bag +Outer Carton |
||
