CCEWOOL® classic series ceramic fiber paper is also known for aluminum silicate fiber paper, made from 9 shot-removal process. Temperature degrees are 1260C, 1400C, 1430C, thickness varies from 0.5mm to 12mm. It is feasible to be cut into different shapes and size of gaskets according to customer’s requirement.
CCEWOOL® classic series ceramic fiber paper is also known for aluminum silicate fiber paper, made from 9 shot-removal process. Temperature degrees are 1260C, 1400C, 1430C, thickness varies from 0.5mm to 12mm. It is feasible to be cut into different shapes and size of gaskets according to customer’s requirement.
Low thermal capacity
Low thermal conductivity
Excellent electrical insulation properties
Excellent machining performance
High strength, tear resistance
High flexibility
Low shot content
Industrial insulation, sealing, anti-corrosion material
Insulation material for instruments and heating element
Insulation material for automobile and aerospace industry
Expansion joints filling material
Isolation for construction material, metallurgy and glass industries
Molten metal sealing gasket
Fireproof material
Substitite for glass fiber and asbestos fiber
1. The ordinary ceramic fiber paper doesn’t expand when heated, but the expandable ceramic fiber paper will expand when heated thus offers its better sealing effect. Manufactured through 9 shot-removal process thus shot content is 5% lower than similar products.
2. Tensile strength is 3% higher than others.
3. Customized vacuum formed ceramic fiber paper and gasket with various shapes and sizes.
4. Thickness ranges from 0.5 to 12mm, width ranges from 50mm to 1270mm.
|

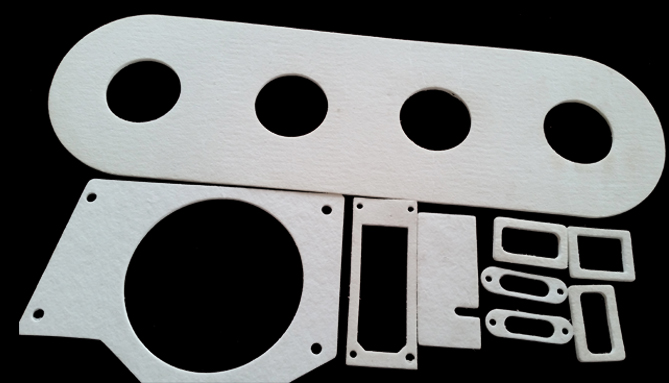

CCEWOOL® Ceramic Fiber Gasket |
|||
|
Item |
1260STD |
1400HA |
1430HZ |
|
Operation Temperature |
1050℃ |
1200℃ |
1350℃ |
|
Density (kg/m3) |
180-200 |
||
|
Tensile Strength (PSI) |
58 |
94 |
136 |
|
Linear Shrinkage (％) |
|||
|
@1000C,24hrs |
2 |
- |
- |
|
@1100C,24hrs |
- |
2 |
- |
|
@1200C,24hrs |
- |
- |
2 |
|
Lose on ignition (％) |
9 |
9 |
9 |
|
Chemical Composition (％) |
|||
|
Al2O3 |
46 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
97 |
99 |
- |
|
ZrO2 |
- |
- |
15-17 |
|
Fe2O3 |
1 |
0.2 |
0.2 |
|
Na2O+K2O |
0.5 |
0.2 |
0.2 |
|
Package |
Inner Plastic Bag +Outer Carton |
||
