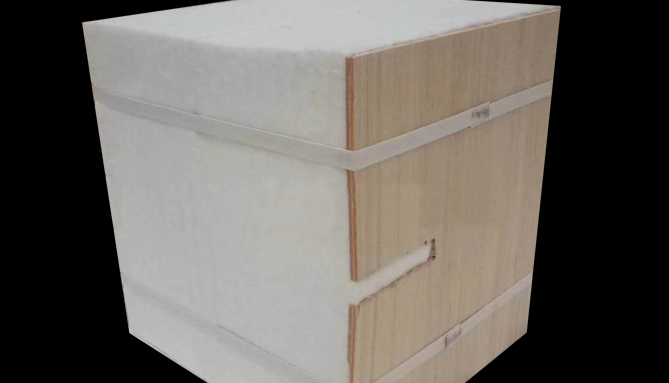

CCEWOOL ® Ceramic Fiber Modules is made from the corresponding ceramic fiber material acupuncture blanket processed in dedicated machines according to fiber component structure and size.
Temperature degree：1260℃ （2300℉）， 1400℃ (2550℉)， 1430℃(2600)
CCEWOOL ® Ceramic Fiber Modules is made from the corresponding ceramic fiber material acupuncture blanket processed in dedicated machines according to fiber component structure and size. In the process, a certain proportion of compression is maintained, in order to ensure modules expand to the different directions after completion of ceramic fiber folded module wall lining, to create mutual extrusion among modules and form a seamless whole unit. Various shapes of SS304/SS310 are available.
Excellent chemical stability and thermal stability;
Low thermal conductivity, low thermal capacity;
Supporting both soldiers-march-based arrangement and assembly-based arrangement with the help of anchor in various forms in the back of the module;
Module will squeeze with each another in different directions after unbinding, to produce no gap;
Elastic fiber blanket resists to external mechanical forces;
Fiber blanket's elasticity can compensate for the deformation of furnace shell, so that no gap is generated between modules;
Light weight, and absorbing less heat as insulation materials;
Low thermal conductivity brings strong energy-saving effects;
Able to withstand any thermal shock;
Lining need no drying or curing, ready to use immediately after installation;
Anchoring system is far away from hot surface of component, to allow metal anchor member to be in a relatively low temperature
All kinds of industrial furnace and heating device linings for metallurgy, machinery, construction materials, petrochemicals, non-ferrous metal industries.
Low mass kiln cars
Roller hearth furnace linings
Gas Turbine exhaust ducts
Duct linings
Furnace hearths
Boiler insulation
Furnace lining insulation for high-temperature applications
1. Precise size
2. Two sides cutting module, four sides cutting module are both available
3. Supplying vacuum formed ceramic fiber module as per drawings
|
CCEWOOL® Ceramic Fiber Cutting Module |
|||||
|
Item |
1050 |
1260STD |
1260HP |
1400 |
1430HZ |
|
Operation Temp |
950℃ |
1050℃ |
1100℃ |
1200℃ |
1350℃ |
|
Density |
160-220 kg/m3 |
||||
|
Linear Shrinkage EN1094-1 （%） |
|||||
|
@950℃, 24hrs |
1.5 |
- |
- |
- |
- |
|
@1000℃,24hrs |
2 |
1.5 |
1.5 |
- |
- |
|
@1100℃,24hrs |
3 |
2.5 |
2 |
1.5 |
- |
|
@1200℃,24hrs |
- |
3 |
3 |
2 |
1 |
|
@1300℃,24hrs |
- |
- |
- |
3 |
2 |
|
@1400℃,24hrs |
- |
- |
- |
- |
3 |
|
Tensile Strength （Mpa） |
|||||
|
Density-64kg/m3 |
0.039 |
0.039 |
0.039 |
0.039 |
0.039 |
|
Density-96kg/m3 |
0.078 |
0.078 |
0.078 |
0.078 |
0.078 |
|
Density-128kg/m3 |
0.103 |
0.103 |
0.103 |
0.103 |
0.103 |
|
Density-160kg/m3 |
0.127 |
0.127 |
0.127 |
0.127 |
0.127 |
|
Thermal Conductivity W/(m·k) |
0.45 |
0.43 |
0.4 |
0.35 |
0.3 |
|
Chemical Composition（%） |
|||||
|
Al2O3 |
44 |
45-46 |
47-49 |
52-55 |
35-38 |
|
Al2O3+SiO2 |
≥96 |
≥98 |
≥99 |
≥99 |
- |
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
Al2O3+SiO2+ZrO2 |
- |
- |
- |
- |
≥99 |
|
Fe2O3 |
≤1.0 |
≤0.8 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Na2O+K2O |
≤0.4 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
|
CaO+MgO |
≤0.3 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
|
Specification （mm） |
L*W: 300*300;450*300;600*300 |
||||
|
H: 100;150;200;250;300 |
|||||
|
Package |
Carton Box or Pallet |
||||
