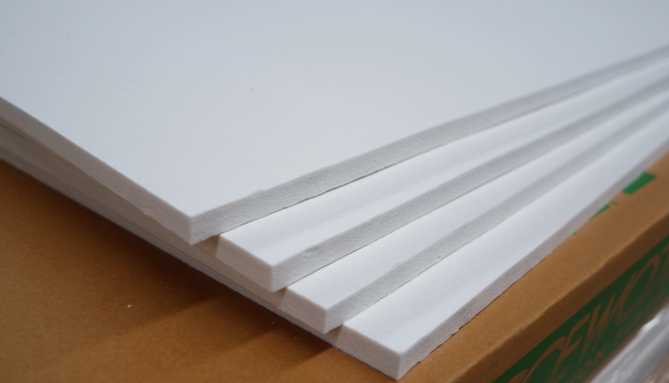

CCEWOOL ® Ceramic Fiber Back-lining Board

Product details

By adding a small amount of high-purity alumina silicate fiber binders, CCEWOOL ® Ceramic Fiber back-lining Board is made through automation control and continuous production process, with a host of features such as precise size, good flatness, high strength, lightweight, excellentar thermal shock resistance and anti-stripping, which can be widely used for insulation in the linings around and at the bottom of kilns, as well as ceramic kilns fire position, craft glass mold and other positions.

Features and Application

Features:

Low heat capacity, low thermal conductivity;

High compressive strength;

Non-brittle material, good elasticity;

Accurate sizes and good flatness;

Easily molded or cut, easy to install;

Continuous production, even fiber distribution and stable performance;

Excellent thermal stability and thermal shock resistance

Application:

Cement and construction materials: furnace back thermal insulation lining.

Ceramics industry: lightweight kiln car structure and the furnace hot face lining, separation and fire position for all kiln temperature zones;

Petrochemical industry: as high-temperature furnace hot surface lining material;

Glass industry: As furnace hearth back insulation lining, burner blocks;

Hot surface refractories, heavy refractory back linings, expansion joints.

Firebrick back lining for tundish, slot cover and aluminum plant electrolytic reduction cell;

All heat treatment furnace lining, expansion joints, backing insulation, thermal insulation and mold insulation, steel mill ladle, tundish, ladle and refined ladle back linings.

Advantage

1. The CCEWOOL ceramic fiberboard production line has a fully automatic drying system, which can make drying quicker and more thorough. The deep drying is even and can be completed in 2 hours. The products have good dryness and quality with compressive and flexural strengths over 0.5MPa.

2. The products produced by the fully automatic ceramic fiber board production lines are more stable than the ceramic fiber boards produced by the traditional vacuum forming process. They have good flatness and accurate sizes with the error +0.5mm.

3. CCEWOOL ceramic fiber boards can be cut and processed at will, and the construction is very convenient. They can be made into both organic ceramic fiber boards and inorganic ceramic fiber boards.

Size and TDS
